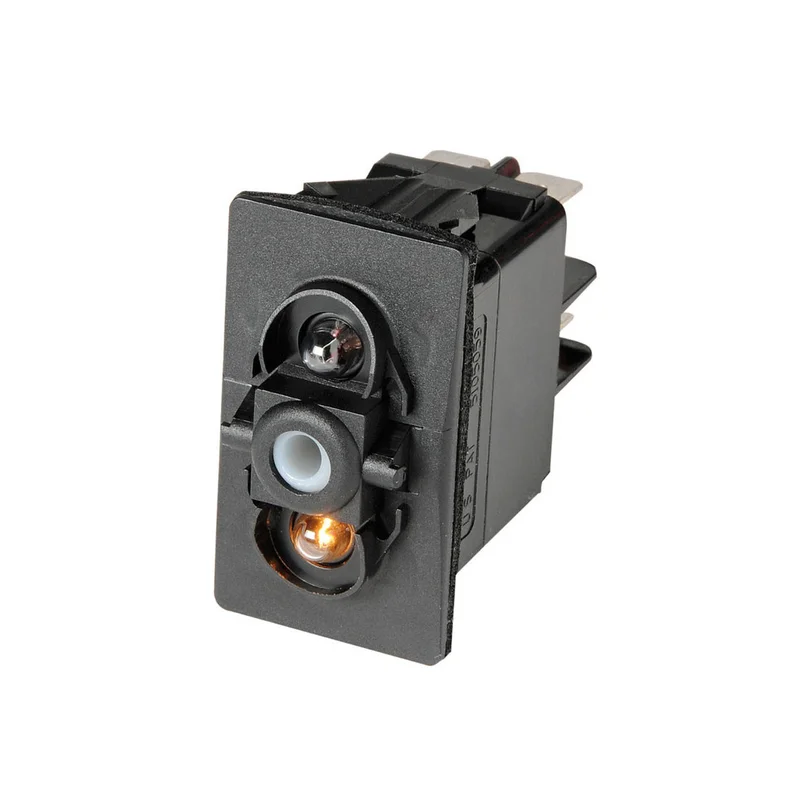

Carling Contura Snap-In Mounted Switches

Description

The Carling Contura Snap-In mounted switches, are constructed of thermoplastic polycarbonate and are offered with a hard nylon overlay, or a soft-touch elastomer overlay. They have Led illumination and are intendent for Marine use.

The Carling Contura Mounted Switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single, or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. Achieve maximum design variety with minimum inventory. Simply swap rockers to create an entirely new look for your panel.

The switches offer complete protection against water, dust, debris and are sealed to IP66/68 for above-panel components and prolonged effects of spray and immersion under pressure, and are recognized to UL1500 ignition protection for marine products.

The switches come in different types. Apart from the classic 2 and 3-position switch , or , they are also available in Reset format, meaning that when you pull the switch from the Off position to one of the two On Positions, it will only stay there as long as you hold it and then spring back.

Reset switches are often used for winch controls, engine starters and other applications when you dont want the switch to be unintentionally left on.

Important Notice: The actuators are not included.

Download here the Technical Sheet of the Carling Contura

Technical Characteristics

Illuminated with a Led light

Waterproof 56

Max 20A

Available with covers

Covers made of non-slip polycarbonate

A wide variety of symbols is included

Mounting dimensions: 49 x 25 x 39 mm
