Description
Can display five kinds of data at the same time , support NMEA2000 network and analog signal input.
With two display styles of preference , pure hardware driven display and high reliability.
High light transmittance and a bright high-resolution screen display that can be seen in direct sunlight.
Ip67 protection rating for the entire gauge. Low power consumption, high frequency, fast speed. Easy installation, simple operation.

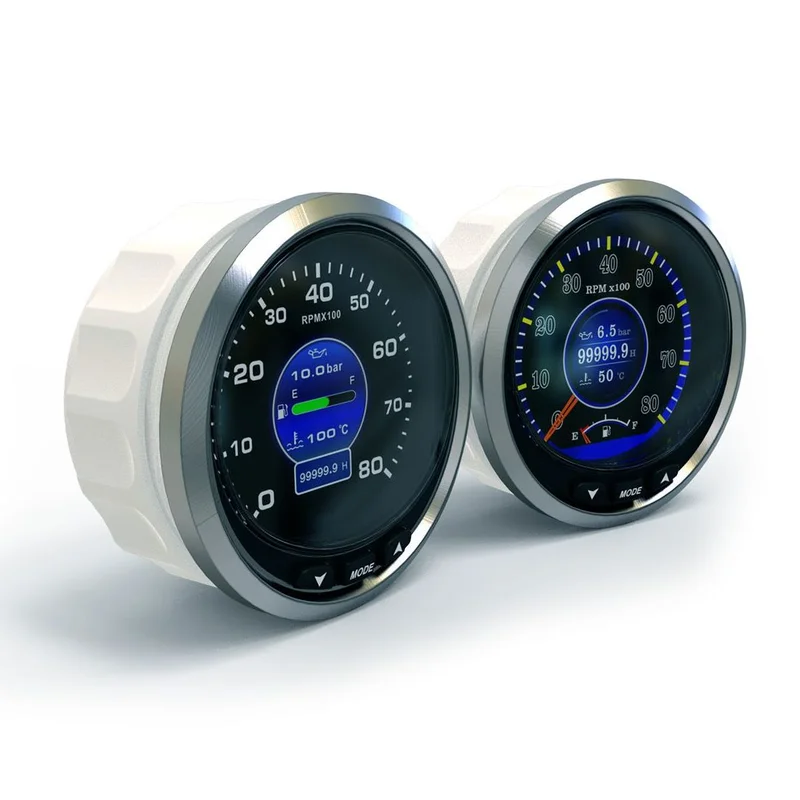

The KMG-30K/KMG-30KP gauge is a multifunctional digital instrument developed specifically for boats, yachts, and marine applications. The instrument integrates major functions such as fuel level, oil pressure, tachometer, speedometer, and oil and water temperature all in one device.
The robust and compact design allows users to have more important information available at the same time. The instrument comes in a stainless-steel cover with a black dial and two styles of display interfaces, touch screen or button, to meet your different requirements.
The connection of KMG-30K/KMG-30KP can be altered by both CAN bus and analog signal input according to customer requirements; displaying data and instances can be set accordingly as well. The unit is compatible with J1939 and NMEA 2000 systems.
KUS has over 20 years of experience supplying gauge and instrumentation for the marine industry; they know the importance quality performance in the harshest environment.
The gauge bodies are IP67 rated, with anti-fogging and scratch resistant lens cover; this means that each gauge is waterproof and built to withstand the open water conditions. Analog gauges are also back-lit, by long lasting LED lights, making it easy to read at night or under the suns glare.
KUS offers complete sets of gauges for the inboard and outboard engines, as well as other gauges to help you have a safer experience out on the water.
Download here the product data sheet.
Installation Diameter: 10 cm
Depth: 68.9 mm
Voltage: 9 – 32 V
Current: 90mA
Resolution: 432 x 432 px
Working / Storage Temperature: -30C to 85C
Diameter: 116 mm
Available:Black / Silver
Product Code: 04598
